MRF393 - Silicon Bipolar NPN Microwave Power Transistor 100 W, in the 30 – 500 MHz Frequency Range

MRF393 - Silicon Bipolar NPN Microwave Power Transistor 100 W, in the 30 – 500 MHz Frequency Range

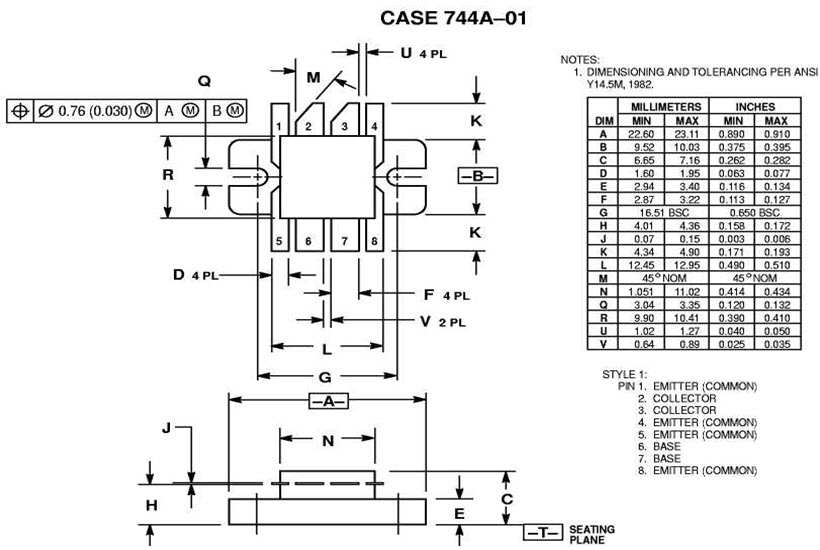

The silicon bipolar n-p-n transistor is designed for wideband large–signal output and driver amplifier stages in the 30 to 500 MHz frequency range.

Features (At 500 MHz):

  • Output Power: 100 W
  • Power Gain: 7.5 dB Min
  • Efficiency: 50% Min
Скачать техническое описание
Отправить запрос
Отправить запрос

Absolute Maximum Ratings

ParametersSymValueUnit
Collector–Emitter Voltage VCEO 30 VDC
Collector-Base Voltage VCBO 60 VDC
Emitter–Base Voltage VEBO 4 VDC
Collector Current IC 16 ADC
Operation Junction Temperature Tj -65 ÷ +200 ºС
Storage Temperature Range TSTG -65 ÷ +150 ºC
Thermal Resistance, Junction to Case RqJC 0.65 °C/W
Total Power Dissipation, TC=25 ºC PD 270 W

Parameters

ParameterSymbolMin.Typ.Max.Unit
Collector–Emitter Breakdown Voltage (IC = 50 mA, IB =0 A) V(BR)CEO 30 — — VDC
Collector–Emitter Breakdown Voltage (IC = 50 mA, VBE = 0 V) V(BR)CER 60 — — VDC
Emitter–Base Breakdown Voltage (IE = 5 mA, IC = 0 A) V(BR)EBO 4 — — VDC
Collector– Base Leakage Current (VCB = 30 V, IE =0 A) ICBO — — 5 mADC
DC Current Gain (VCE = 5 V, IC = 1 A) hFE 20 — 100
Output Capacitance (VCB = 28 V, IE = 0 A, f = 1 MHz) COB — — 95 pF
Power Gain (VCC = 28 V, f = 500 MHz, POUT = 100 W) Gp 7.5 — — dB
Drain Efficiency (VCC = 28 V, f = 500 MHz, POUT = 100 W) h 50 — — %
